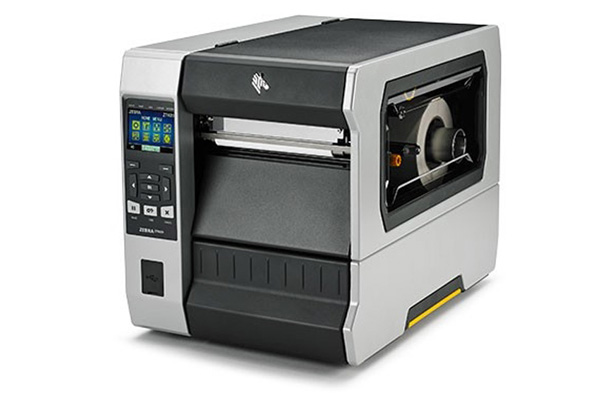

Zebra ZT600 Series Industrial Thermal Printer — ZT610 & ZT620
The short answer: The Zebra ZT600 Series is Zebra's most capable industrial printer line — delivering up to 600 dpi resolution (ZT610) and print speeds up to 14 ips in an all-metal, 24/7-rated chassis.
Available in two models — the 4-inch ZT610 for high-resolution micro-labeling and the 6-inch ZT620 for wide-format shipping and pallet labels — both run on Zebra's Link-OS platform with optional RFID, Wi-Fi, and cloud fleet management. Coding Solutions, Inc. is an authorized supplier with 25+ years of application experience. Request a quote below.
Zebra ZT600 Series
- Brand: Zebra Technologies
- Printer Models: ZT610 and ZT620
- Category: Ultra-Rugged Industrial Thermal Printer
- Print Technology: Thermal Transfer & Direct Thermal
- Max Resolution: 600 dpi (ZT610) / 300 dpi (ZT620)
- Print Width: 4.09" (ZT610) & 6.6" (ZT620)
- Max Print Speed: Up to 14 ips
- Connectivity: Gigabit Ethernet, USB, Bluetooth 4.0, optional Wi-Fi
- RFID: Optional field-installable
- Platform: Link-OS (Print DNA suite)
- Availability: In Stock — Request a Quote
Zebra ZT600 Series Overview
To keep your mission-critical operations running smoothly, you need printing systems that can stand up to the harshest environments and the most demanding schedules. The Zebra ZT600 Series advances the legacy of the industry-leading Xi Series to combine rugged durability and exceptional performance on a user-friendly, future-ready platform. These industrial workhorses deliver superior print quality and speed across the widest range of applications, providing 24/7 reliability to virtually eliminate downtime in your most vital workflows.
Exceptional Performance for High-Precision Applications
Whether you are printing tiny labels for electronic components or wide labels for shipping pallets, the ZT600 Series has you covered. The ZT610 delivers print resolution up to 600 dpi — sufficient to meet GS1 barcode grade A verification requirements for 1D and 2D codes — making it the right choice for micro-labeling where precision is non-negotiable. With best-in-class print registration tolerances and advanced thermal management, you get consistent, crisp results even at maximum print speeds of 14 inches per second (ips).
| Specification | ZT610 | ZT620 |
|---|---|---|
| Max print resolution | 600 dpi | 300 dpi |
| Max print speed | 14 ips (at 203 dpi) | 14 ips (at 203 dpi) |
| Print width | 4.09" (104mm) | 6.6" (168mm) |
| Max media width | 0.79" – 4.5" | 2.0" – 7.0" |
| Best for | Micro-labels, electronics, healthcare | Pallet labels, shipping, wide-format |
| RFID option | Yes (field-installable) | Yes (field-installable) |
24/7 Reliability in the Harshest Environments
Built to withstand years of continuous operation, ZT600 Series printers feature an all-metal, heavy-gauge structural chassis — the same design philosophy that made the Xi Series the benchmark for industrial print durability. The thermal management system is engineered to perform in operating temperatures from 40°F to 104°F and humidity ranges from 20% to 85% RH (non-condensing), covering typical warehouse, cold storage, and light manufacturing environments. The intuitive side-loading media path simplifies operation and reduces the risk of mechanical errors during shift changes.
Safety certifications include IEC 60950, CE, FCC-B, ICES-003, and ENERGY STAR compliance — covering deployment across North American and international facilities.
Operational Visibility and Remote Management via Link-OS
Powered by Link-OS™ and Zebra's Print DNA suite, the ZT600 Series provides unparalleled fleet intelligence. IT departments can manage a global fleet of printers from a single cloud-based interface using Zebra's Profile Manager Enterprise (PME) and Asset Visibility Service. With advanced security features including PrintSecure, Managed Certificates, Secure Boot, and encrypted connectivity, the ZT600 meets enterprise IT security requirements.
Standard connectivity includes USB 2.0, RS-232 Serial, Gigabit Ethernet (10/100/1000 Mbps), Dual USB Host, and Bluetooth 4.0. Optional 802.11ac Wi-Fi enables wireless integration for facilities with mobile or roaming printer deployments. The high-visibility color graphic touch display provides real-time status alerts and step-by-step guided troubleshooting — enabling operators to resolve issues without service calls.
User-Friendly Design for Maximum Uptime
Every detail of the ZT600 Series was designed to minimize downtime. Color-coded media and ribbon paths make loading intuitive across all skill levels. The tool-less printhead and platen roller replacement system allows operators to perform maintenance in seconds — a critical advantage in 24/7 environments where waiting for a service technician is not an option. Onboard sensors, diagnostics, and help resources provide step-by-step guidance to resolve the most common issues at the machine.
Future-Ready Adaptability
The ZT600 Series is designed to evolve with your business. Multiple connectivity options, including Gigabit Ethernet, Bluetooth 4.0, and optional 802.11ac Wi-Fi, ensure seamless ERP and WMS integration. Field-installable media handling options — peel-and-present, cutter, and rewind — and optional RFID encoding capability (UHF and HF) mean the printer you buy today remains the right solution as your labeling requirements mature. The Link-OS platform supports Windows, Linux, Android, iOS, and macOS, future-proofing your software ecosystem.
Zebra ZT600 Series Full Specifications
Print & Media
- Printing Technology:
- Thermal Transfer and Direct Thermal
- Max Resolution:
- ZT610: 203, 300, or 600 dpi / ZT620: 203 or 300 dpi
- Max Print Speed:
- Up to 14 ips (inches per second) at 203 dpi
- Image Security:
- PrintSecure, Managed Certificates, Secure Boot, encrypted connectivity
- Print Width:
- ZT610: 4.09" (104mm) / ZT620: 6.6" (168mm)
- Media Width:
- ZT610: 0.79" to 4.5" / ZT620: 2.0" to 7.0"
- Media Type:
- Continuous, die-cut, notch, black-mark
- Media Thickness:
- 0.0023" (0.058mm) to 0.012" (0.305mm)
- Max Label Length:
- Up to 150" (3,810mm) at 203 dpi
- Roll Diameter:
- 8.0" (203mm) O.D. on 3" (76mm) I.D. core
- Sensors:
- Transmissive and Reflective (dual sensors)
- Media Guide:
- Side-loading metal media path with precise mechanical adjustments
- Black Mark Size:
- Min. 0.43" × 0.07" (11mm × 2mm)
- Die-Cut Label Gap:
- 2mm – 4mm
- Auto Cutter:
- Optional heavy-duty guillotine cutter with catch tray
Ribbon & Connectivity
- Ribbon Type:
- Thermal Transfer Ribbon — Wax, Wax/Resin, or Full Resin
- Ribbon Width:
- ZT610: 0.79" to 4.33" / ZT620: 2.0" to 6.7"
- Ribbon Roll Length:
- 1,476 ft (450m) standard
- Ribbon Core I.D.:
- 1.0" (25.4mm)
- 1D Barcode Support:
- Code 11, Code 39, Code 128, ISBT-128, UPC/EAN, MSI, Plessey, GS1 DataBar, and all standard 1D symbologies
- 2D Barcode Support:
- DataMatrix, QR Code, MicroPDF417, MaxiCode, Aztec, TLC 39, RSS-14
- Standard Connectivity:
- USB 2.0, RS-232 Serial, Gigabit Ethernet (10/100/1000 Mbps), Dual USB Host, Bluetooth 4.0
- Optional Wireless:
- 802.11ac Wi-Fi (2.4 GHz & 5 GHz)
- Optional RFID:
- UHF and HF RFID encoding (field-installable)
- Display:
- High-visibility color graphic touch display with status icons and menu navigation
General & Environmental
- Construction:
- Ultra-Rugged All-Metal Industrial Chassis
- Safety Approvals:
- IEC 60950, CE, FCC-B, ICES-003, VCCI, C-Tick, NOM, S-Mark, CCC, ENERGY STAR
- Power Supply:
- Universal — 90–265 VAC, 47–63 Hz
- Power Consumption (Printing):
- 250 Watts (max)
- Power Consumption (Standby):
- ENERGY STAR compliant low-power mode
- Power (Off State):
- Less than 0.5W
- Operating System:
- Link-OS — compatible with Windows, Linux, Android, iOS, and macOS
- Server Compatibility:
- Windows Server 2016, 2019, 2022
- Operating Temperature:
- Thermal Transfer: 40°F to 104°F (4°C to 40°C) / Direct Thermal: 32°F to 104°F (0°C to 40°C)
- Storage Temperature:
- -22°F to 140°F (-30°C to 60°C)
- Operating Humidity:
- 20% – 85% RH (non-condensing)
- Dimensions (W × D × H):
- ZT610: 10.5" × 19.88" × 15.58" / ZT620: 13.44" × 19.88" × 15.58"
- Weight:
- ZT610: 50 lbs (22.7 kg) / ZT620: 57.4 lbs (26 kg)
ZT610 vs. ZT620: Which Model Is Right for You?
Both models share the same platform, chassis, and Link-OS intelligence. The choice comes down to print width and maximum resolution requirements:
| Use case | ZT610 ✓ | ZT620 ✓ |
|---|---|---|
| Electronics / PCB component micro-labels | ✓ | — |
| Healthcare wristband and specimen labels | ✓ | — |
| Standard shipping and carton labels (4") | ✓ | ✓ |
| Pallet / GS1-128 logistics labels (6"+) | — | ✓ |
| High-volume warehouse (24/7) | ✓ | ✓ |
| RFID smart label encoding | ✓ | ✓ |
Key takeaways
- The ZT610 supports up to 600 dpi — the highest resolution in the ZT600 family — meeting GS1 barcode grade A verification requirements.
- The ZT620 provides a 6.6-inch print width for pallet, GS1-128, and wide-format label applications at up to 300 dpi.
- Both models run on Link-OS (Print DNA), enabling cloud-based fleet management across Windows, Linux, Android, iOS, and macOS.
- RFID encoding (UHF and HF) is field-installable on both models — no factory upgrade needed.
- Tool-less printhead and platen roller replacement keeps maintenance downtime under 60 seconds.
- Operating temperature range (40°F–104°F TT / 32°F–104°F DT) covers standard warehouse and light manufacturing environments.
- Coding Solutions, Inc. is an authorized Zebra reseller with 25+ years of industrial labeling expertise — call 630-443-9602 for application-specific guidance.
Frequently asked questions — Zebra ZT600 Series
What is the print resolution of the Zebra ZT600 Series?
The Zebra ZT610 supports print resolutions of 203, 300, and 600 dpi, making it ideal for micro-labeling, fine barcodes, and high-precision applications. The Zebra ZT620 supports 203 and 300 dpi with a wider 6.6-inch print width for pallet labels and wide-format applications. The 600 dpi option on the ZT610 meets GS1 barcode grade A verification standards.
What is the difference between the Zebra ZT610 and ZT620?
The primary difference is print width and resolution: the ZT610 has a 4.09-inch (104mm) print width and supports up to 600 dpi, while the ZT620 has a 6.6-inch (168mm) print width and supports up to 300 dpi. Both models share the same all-metal chassis, Link-OS platform, Bluetooth 4.0, Gigabit Ethernet, and optional Wi-Fi and RFID. Choose the ZT610 for high-resolution micro-labeling and the ZT620 for wide pallet or shipping labels.
Does the Zebra ZT600 Series support RFID printing?
Yes. The Zebra ZT600 Series supports optional RFID encoding for both UHF and HF RFID labels. RFID capability is field-installable, meaning it can be added after purchase without returning the printer for factory upgrade. This makes the ZT600 Series a future-ready solution for supply chain, asset tracking, and retail inventory applications.
What connectivity options does the Zebra ZT600 have?
The Zebra ZT600 Series includes USB 2.0, Serial (RS-232), and Gigabit Ethernet (10/100/1000 Mbps) as standard connectivity, plus Dual USB Host ports and Bluetooth 4.0. Optional 802.11ac Wi-Fi is available for wireless integration. The printer runs on Zebra's Link-OS operating system, enabling remote management through the Print DNA suite from Windows, Linux, Android, iOS, or macOS.
How fast does the Zebra ZT600 Series print?
The Zebra ZT610 and ZT620 both print at speeds up to 14 inches per second (ips) at 203 dpi, placing them among the fastest industrial label printers in their class. Print speed reduces at higher resolutions (300 or 600 dpi) to maintain print quality and barcode grade compliance.
Where can I buy the Zebra ZT600 Series with technical support?
Coding Solutions, Inc. (CSI) is an authorized Zebra reseller based in St. Charles, IL with over 25 years of industrial labeling expertise. CSI supplies the full ZT600 Series — ZT610 and ZT620 — with application consulting, media and ribbon compatibility matching, and ongoing technical support. Request a quote on this page or call 630-443-9602.
What labels and ribbons are compatible with the Zebra ZT600 Series?
The ZT600 Series accepts media widths from 0.79 to 4.5 inches (ZT610) or 2.0 to 7.0 inches (ZT620), including continuous, die-cut, notch, and black-mark label stock. Compatible ribbon types include wax, wax/resin, and full resin on rolls up to 1,476 feet (450m). For outdoor, chemical-exposure, or extreme-temperature environments, CSI recommends polyester (PET) labels with resin ribbon for maximum durability.
